Aquapedis II

Basic description

Galvanic 4-chamber bathtub determined for treatment using galvanic and various healing currents in aquatic environment.

Basic equipment

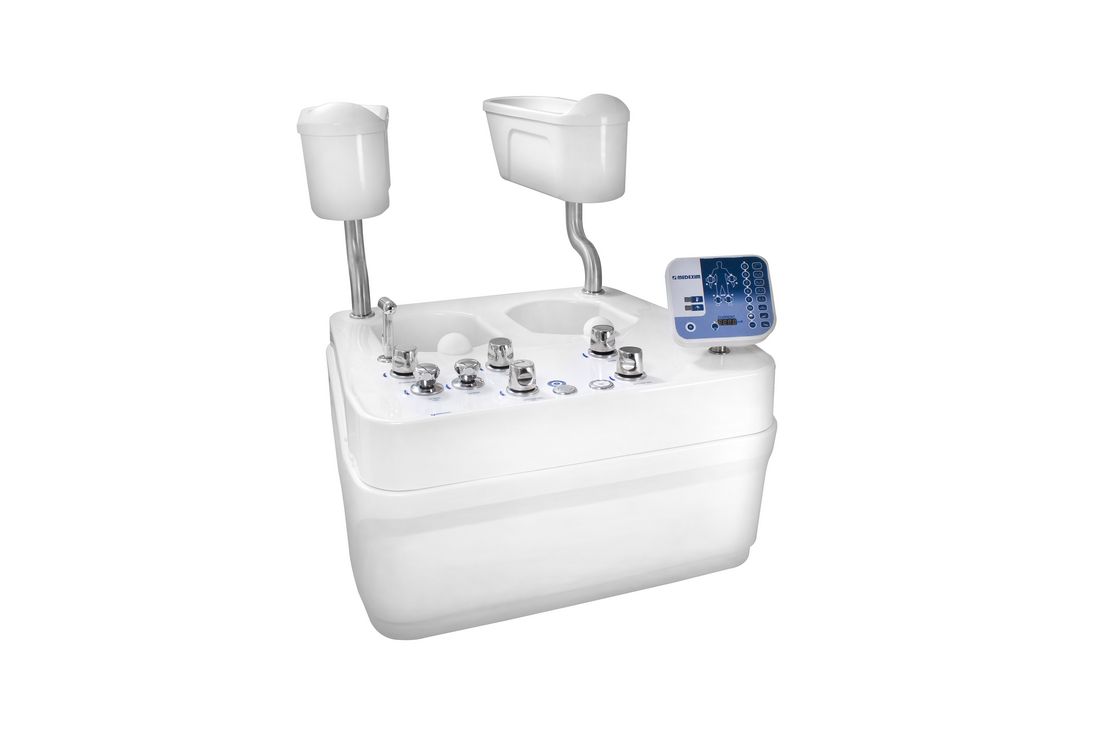

Galvanic 4-chamber limb bath electronically controlled by foil keyboard on vertical stand intended for
treatment using various types of healing currents:

galvanic,
Träbert analgetic,
Träbert spasmolytic,
galvanic commutated,
4 x Sinus (including 1 commutated),
4 x triangle (including 1 commutated),
4x Saw-tooth waveform (including 1 commutated),
4x Faraday (including 1 c commutated),
modulated 0,5 Hz,
modulated 0,5 Hz commutated,
modulated 2 Hz,
modulated 2 Hz commutated,

armature system of mixing of water

temperature during filling and shower rinse,

rinsing STOP shower with hot and cold water, digital timer of procedure 1-30 min.,

bifunctional digital indicator of filling water and water in the tub,

white color of bath tub made of fibre-glass

Optional equipment

Drilled 2x12 air massage jets of upper tubs
Optional color of the side panels selectable from 720 colors
Optional color of the bath tub selectable from 720 colors
Electromagnetic water softener
Alarm
Stool Z 364 with adjustable height of seat
Ring for legs for stool Z 364

Technical data
Power supply	230V / 50Hz / 1~
Dimensions (l x w x h)	1465x945x1020-1040 mm
Height adjustable chair	+
Working capacity of lower tubs	2x20 l
Working capacity of upper tub	12 l
Working capacity of the bath tub	64 l
Maximal capacity of lower tubs	2x34 l
Maximal capacity of upper tub	17 l
Maximal total capacity	102 l
Weight	78 kg
<diameter drain="" of="" pipe=""> </diameter>	50 / 100 mm
Cold and warm water feeder	3/4´´
Time of filling	2,3 min
Time of maximal volume drainage	2 min
Protection again water overflow
