Basic description

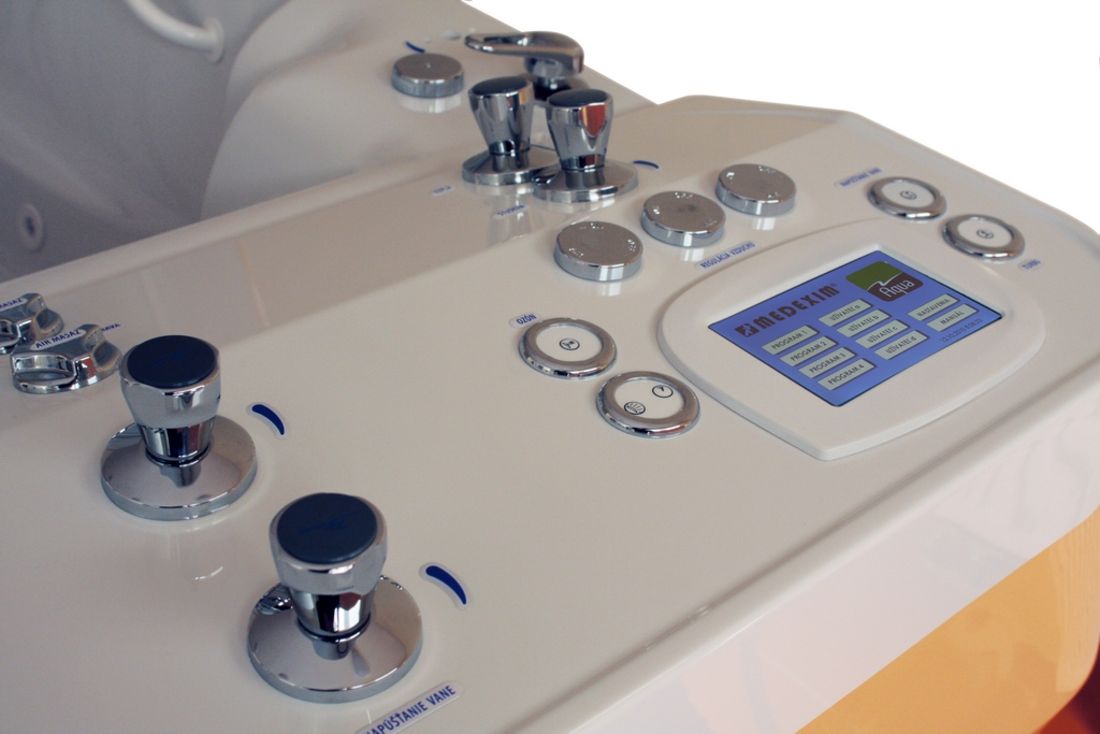

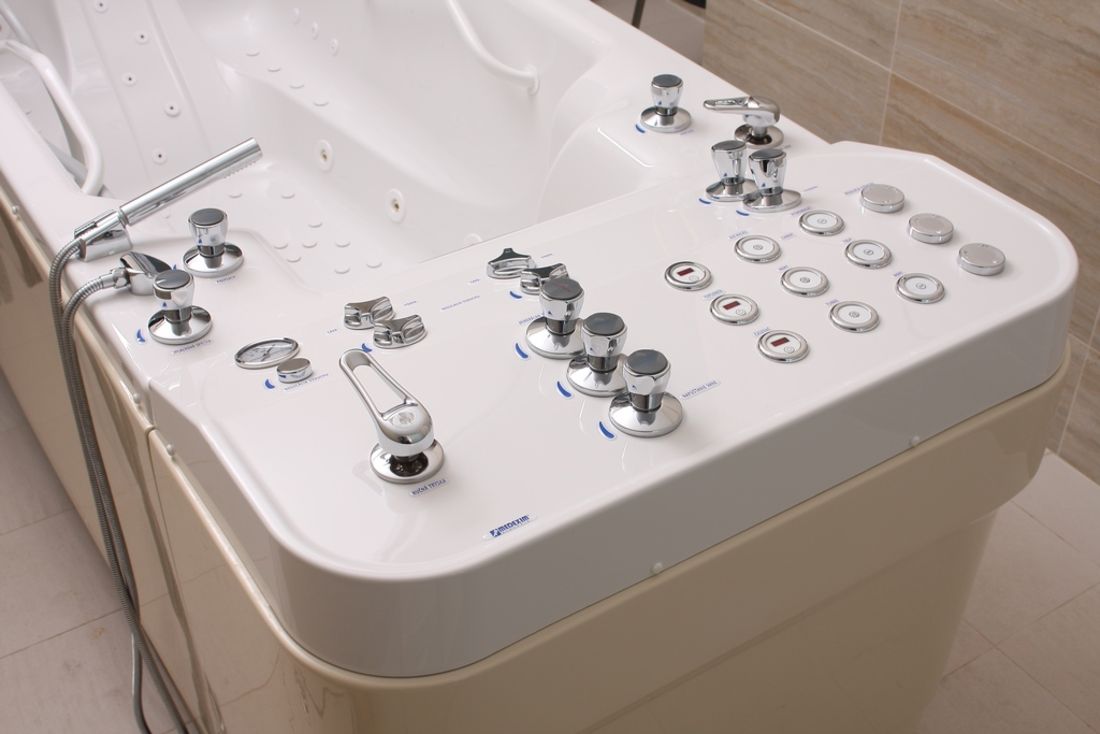

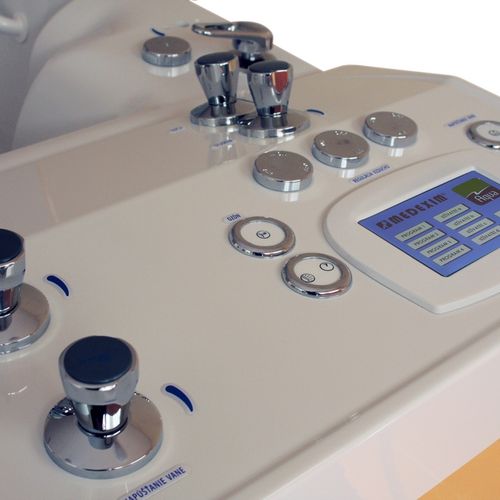

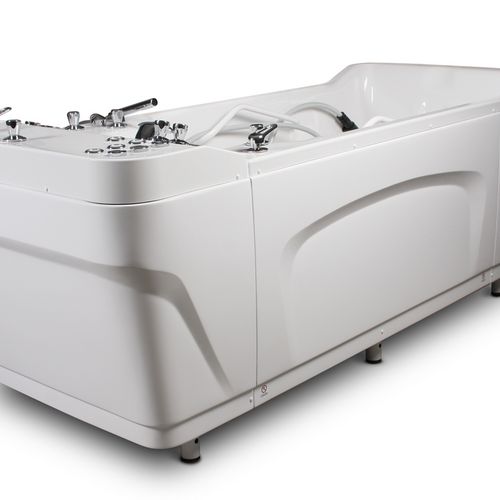

Electronically by built-in foil keyboard controlled hydromassage bath tub intended for procedures of under watermassage applied using hand massage jet on massage hose, 3 zone massage with hydromassage jets and 4 zone massage with air nozzles


Basic equipment

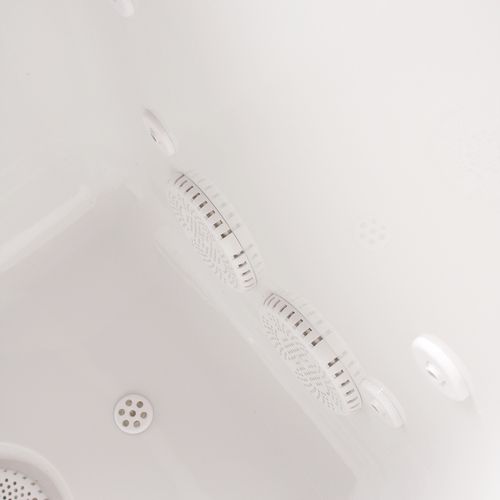

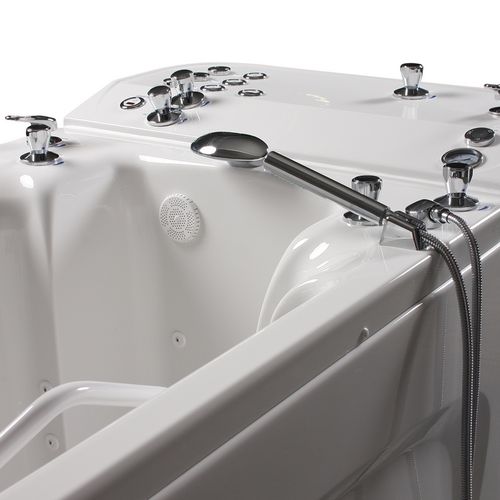

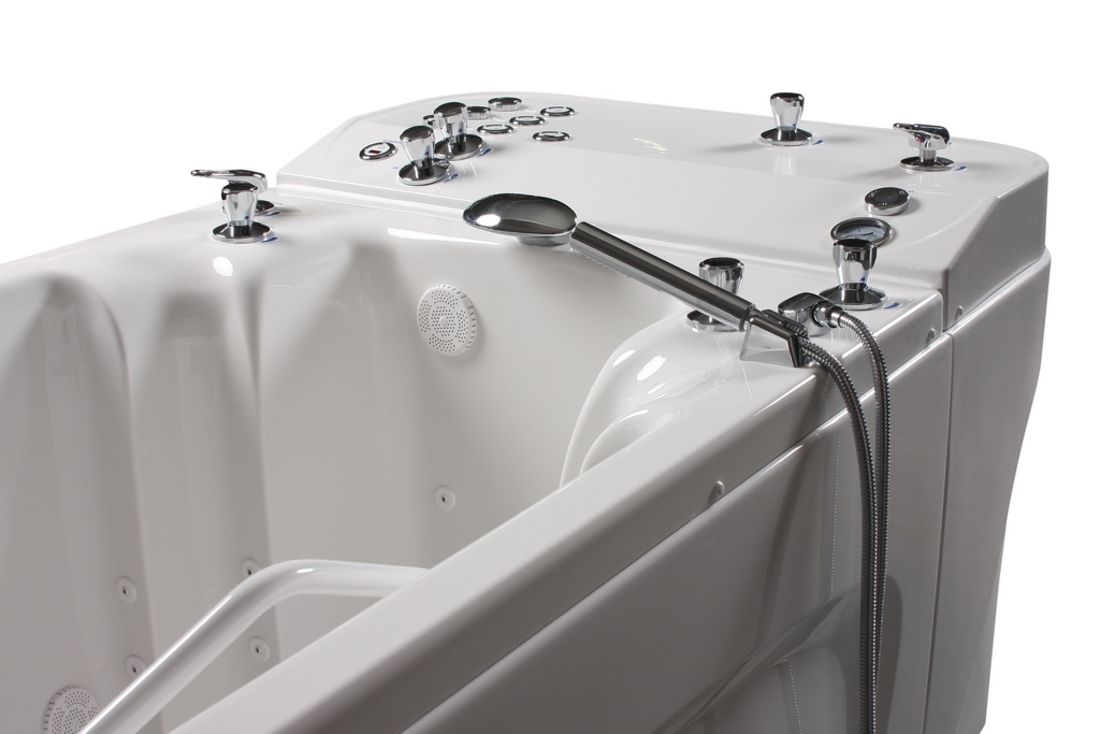

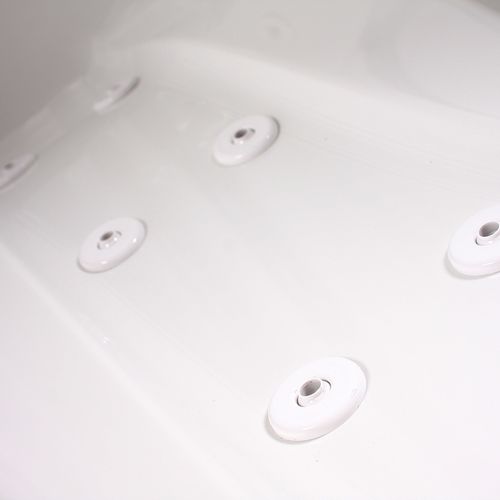

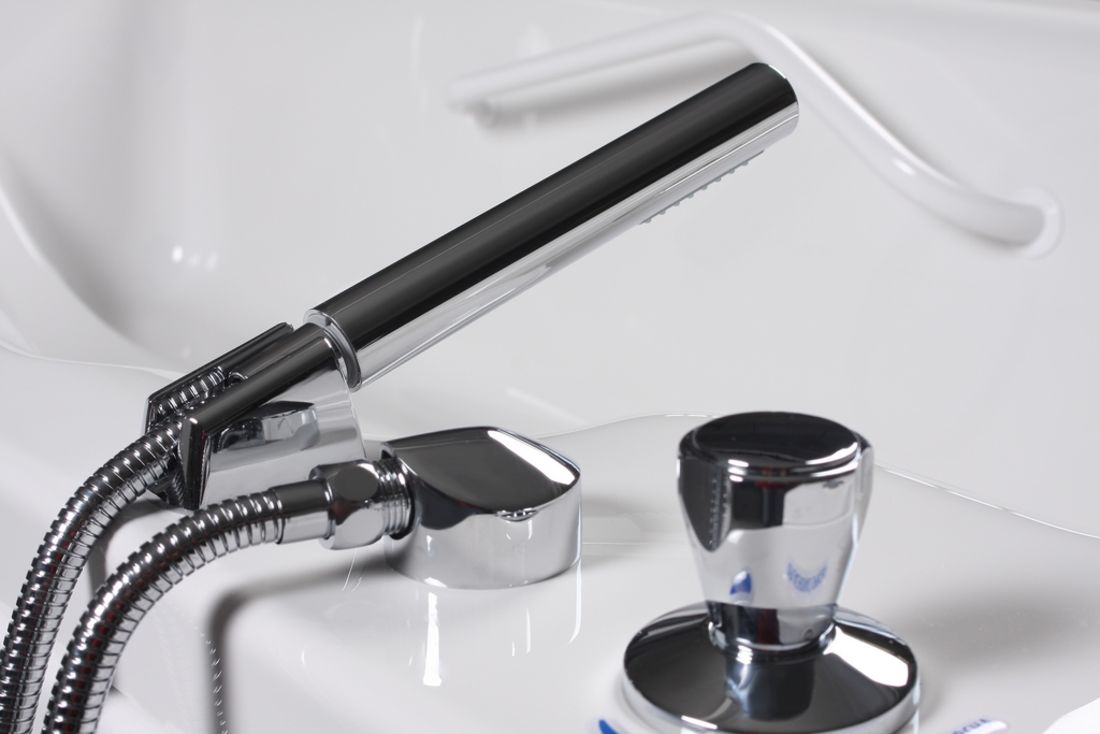

Hand massage jet on massage hose, continuous pressure regulation in hand massage jet checkable on analogous pressure indicator, continous air intake control into water stream, 3 hydromassage zones (10 hydro massage midijets/22 hydro massage microjets) with adjustable direction of water stream and fluent manual regulation of air intake into hydro massage system) working in continuous and pulsating and massage mode, effect of sequential zone massage in pulsating mode, TURBO mode of hydromassage,

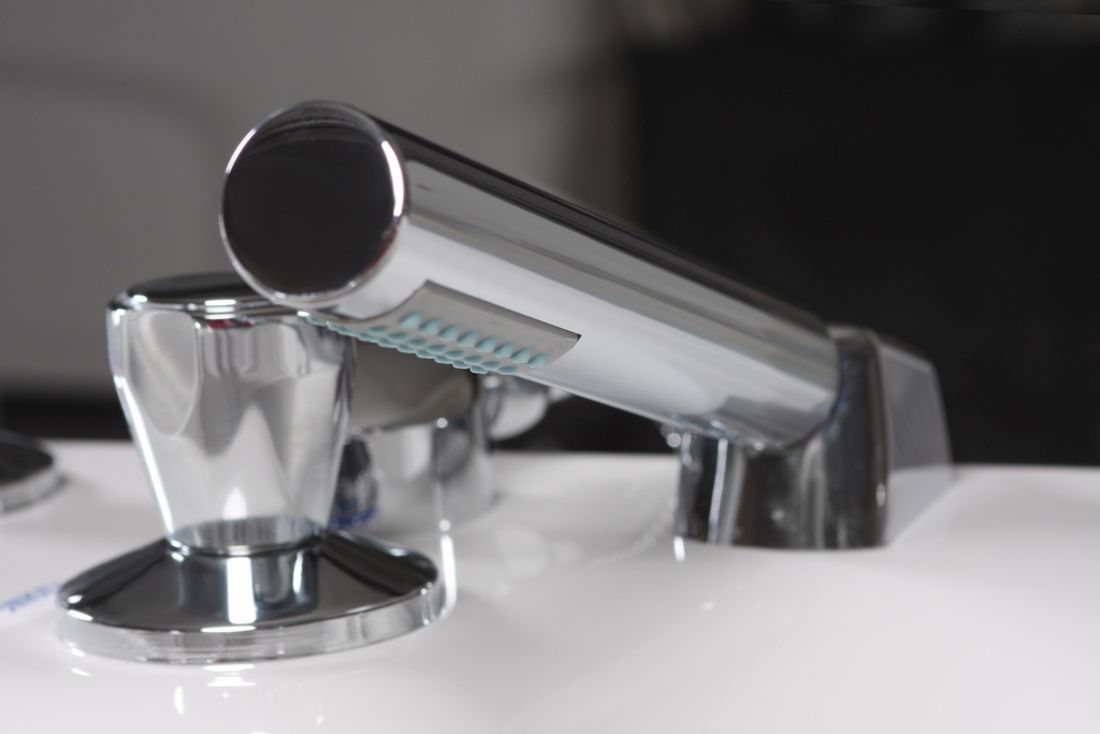

4 zones of air massage (408 air massage nozzles/24 air massage jets) working in continuous massage mode with manual regulation of air massage intensity for each one zone separately, automatic drying of air massage system, electronic timer of procedures (1-30 min.), mechanical flushing of hydromassage system, armature system of mixing of water temperature during filling and shower rinse, rinsing shower with hot and cold water, digital temperature indicator of filling water and water in the bath tub, inflatable neck rest pillow, detachable headrest Medexim, two- level removable step, material acrylate with antibacterial modification

Optional equipment

Wavy (sinusoidal) mode of hydromassage and

electronically controlled intensity of hydromassage +/- in continous mode

5 preprogrammed procedures /Wavy mode and controll of hydro. intensity +/- are not possible/

Foil keyboard on vertical stand

Automatic water filling

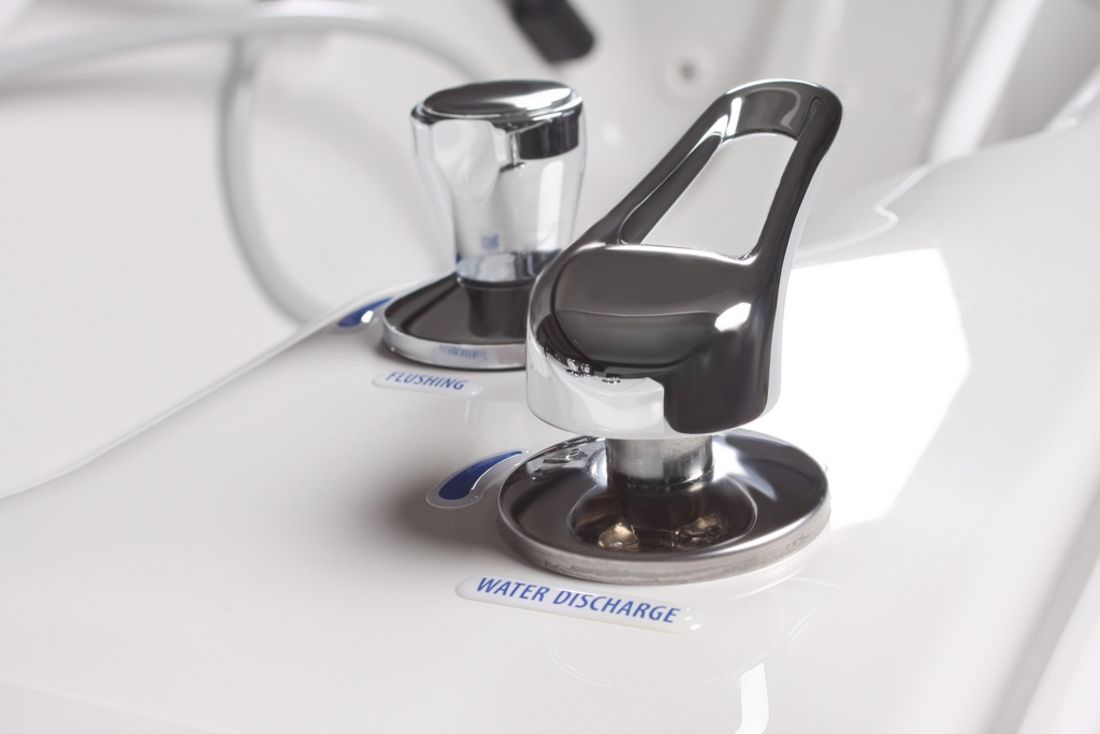

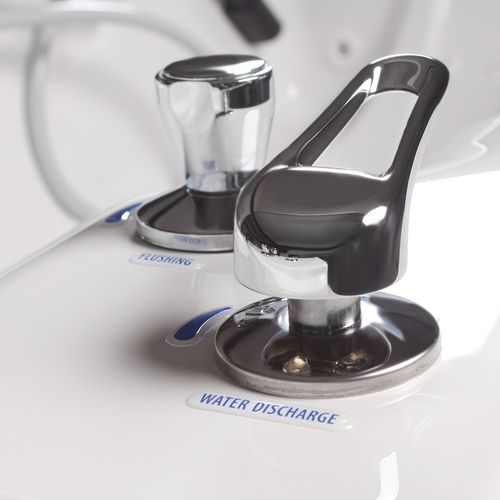

Automatic flushing of hydromassage system

Capsule disinfection with starting packet 42 capsules (only for hydromassage with flushing)

Stainless steel hydro massage jets Medexim (22 hydro massage microjets/10 hydro midi jets)

Stainless steel air massage jets Medexim (250 air massage nozzles/50 air massage jets)

Control valve for admixture mineral or saturated water

Two position footrest /VYY0604/

Inflow made of stainless steel

Valve control made of stainless steel /price per 1 piece/

Quick-coupler for detachable hose of hand massage jet (without air intake)

Optional color of the bath tub: blue, turquoise, green, pea-green

Optional color of the side panels selectable from 720 colors

Handrail for two-level removable step /ZZY0816/

Colour light therapy Koller S30 - point shape

Colour light therapy Koller D90 - ring shape



UV disinfection

Temperature maintenance inside the bath 3kW


Electromagnetic water softener

Backlight of side panels using warm white color

Acoustic indication of reaching of optimal water level during water filling

Technical data


Maximal/usable volume


Power supply


Power consumption

5,2 kW

Input power

29,6 A

Hot and cold water supply


Time of filling /valves are maximally open, pressure 300 kPa/


Time of maximal volume drainage

5 min.

Mixing valve


Valve of hot and cold water


Maximal allowed pressure of filling cold, hot and mineral water

0,7 МПа

Minimal allowed pressure of filling cold, hot and mineral water

0,3 МПa

Water pressure in hand massage jet of massage hose/diameter of the jet 9mm/

0,05 - 0,4 MPa ± 10%


239 kg

Dimensions (lхwхh)


Dimensions (lхwхh–edge of bathtub at the place of entry)


Maximal height at the highest point /valves/


Height adjustable legs


Pump protection again running without water


Maximal temperature of filling hot water



Information on request
